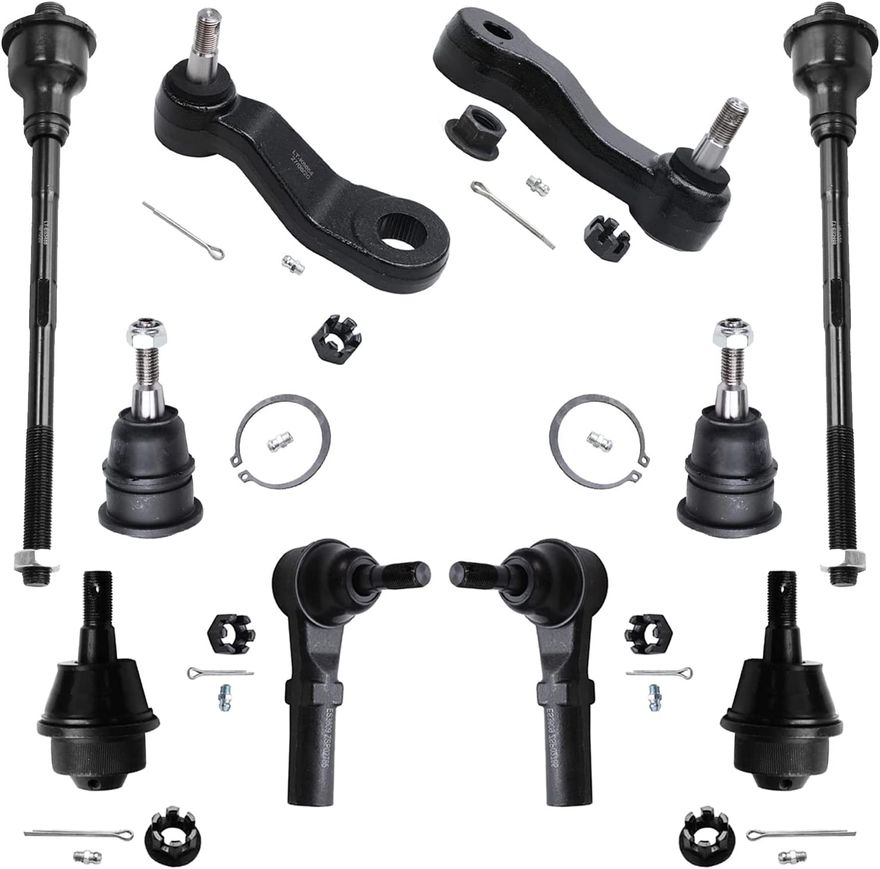

Main Image - Small Suspension Kit

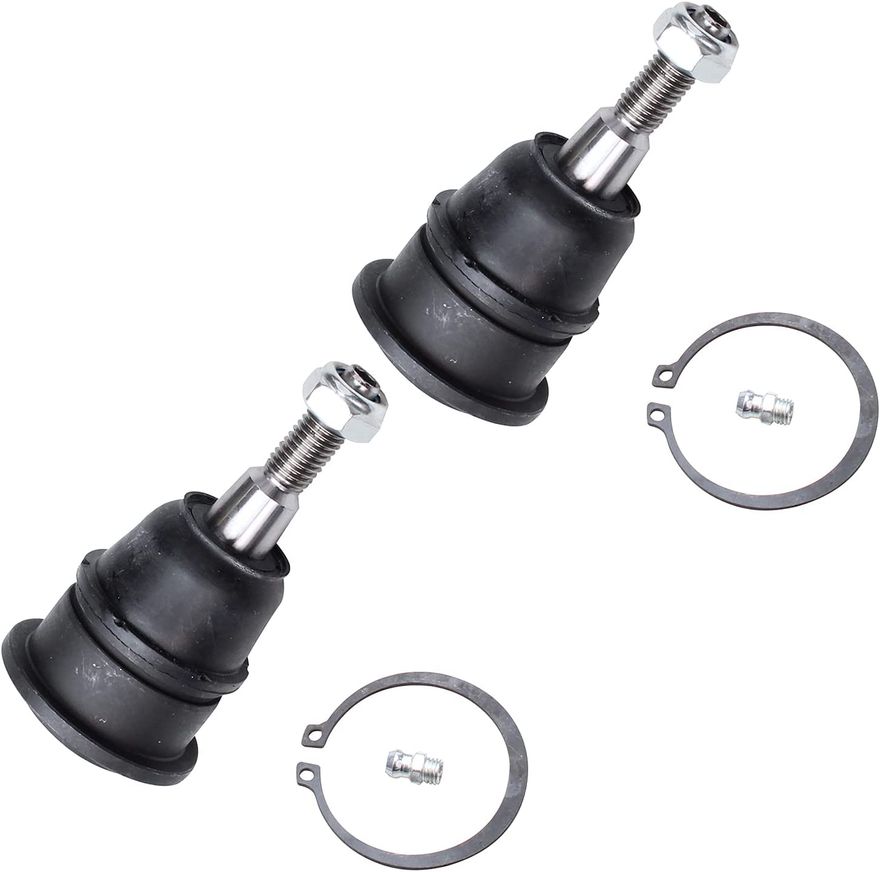

Upper Ball Joint - K6696 x2

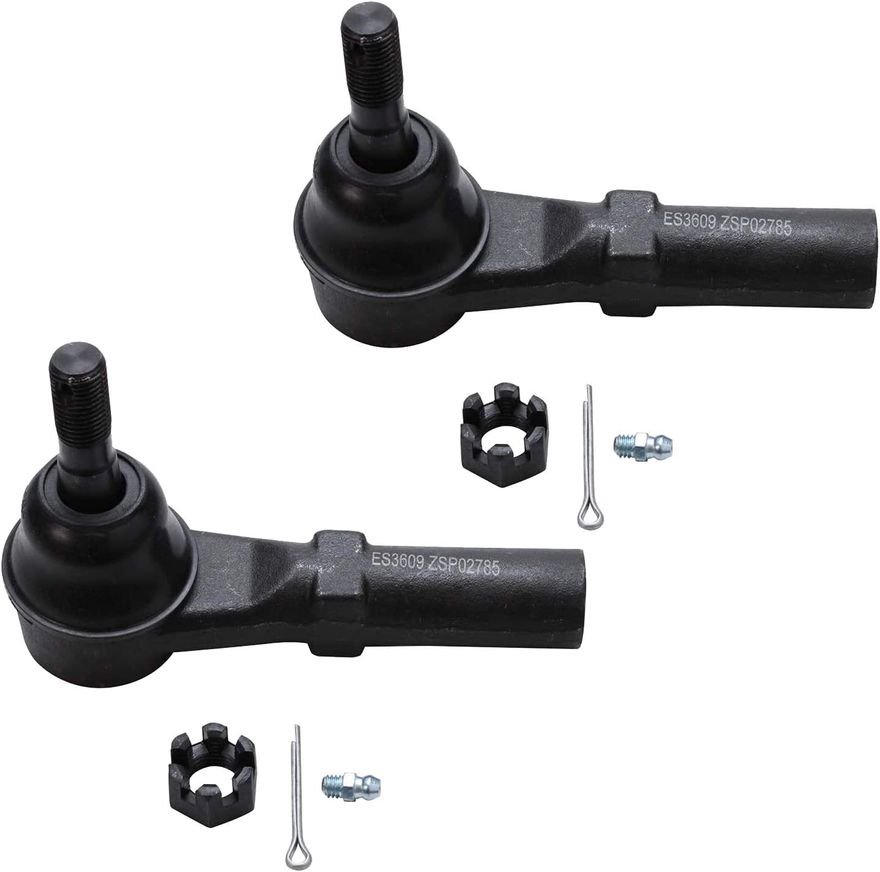

Outer Tie Rod - ES3609 x2

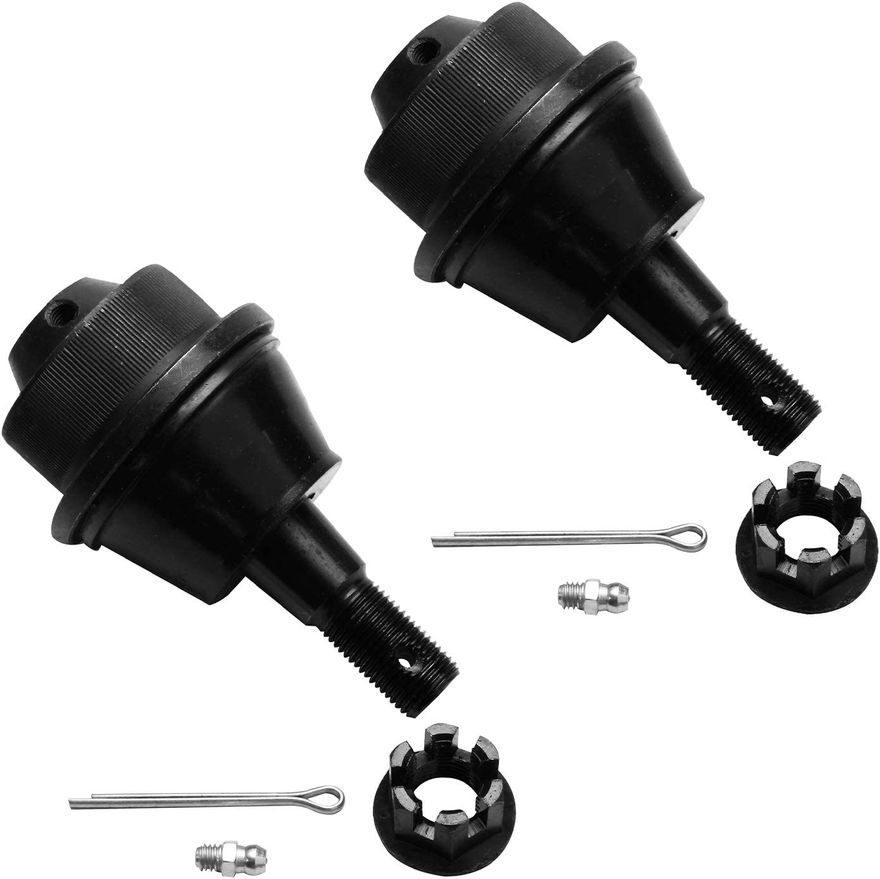

Lower Ball Joint - K6693 x2

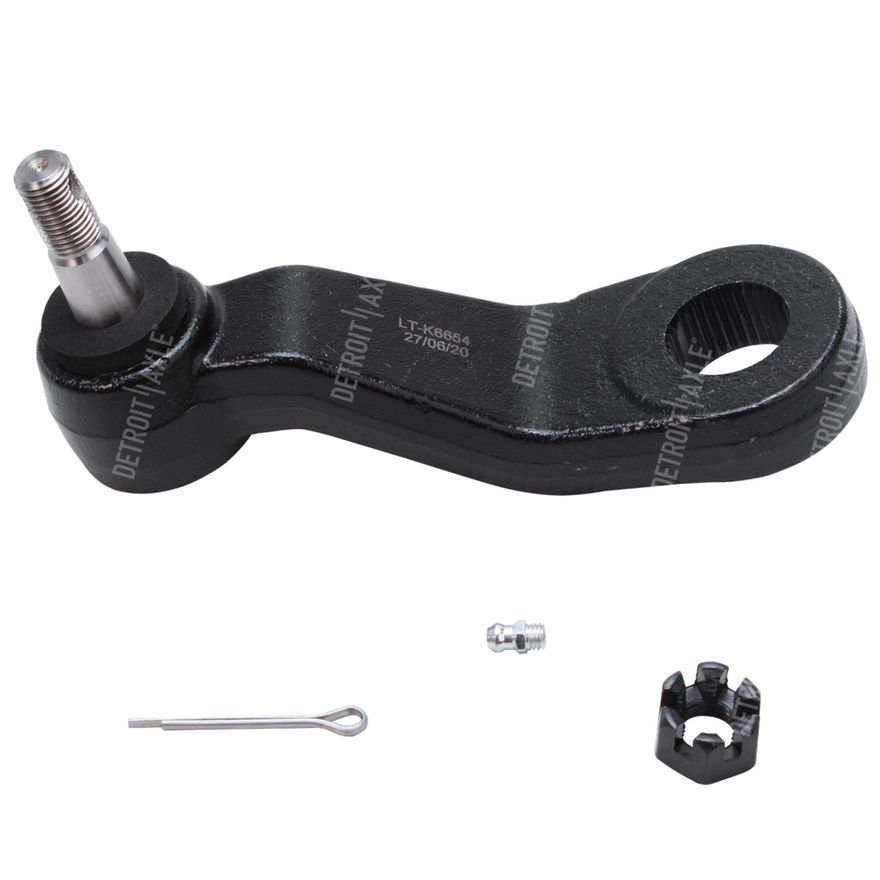

Pitman Arm - K6654

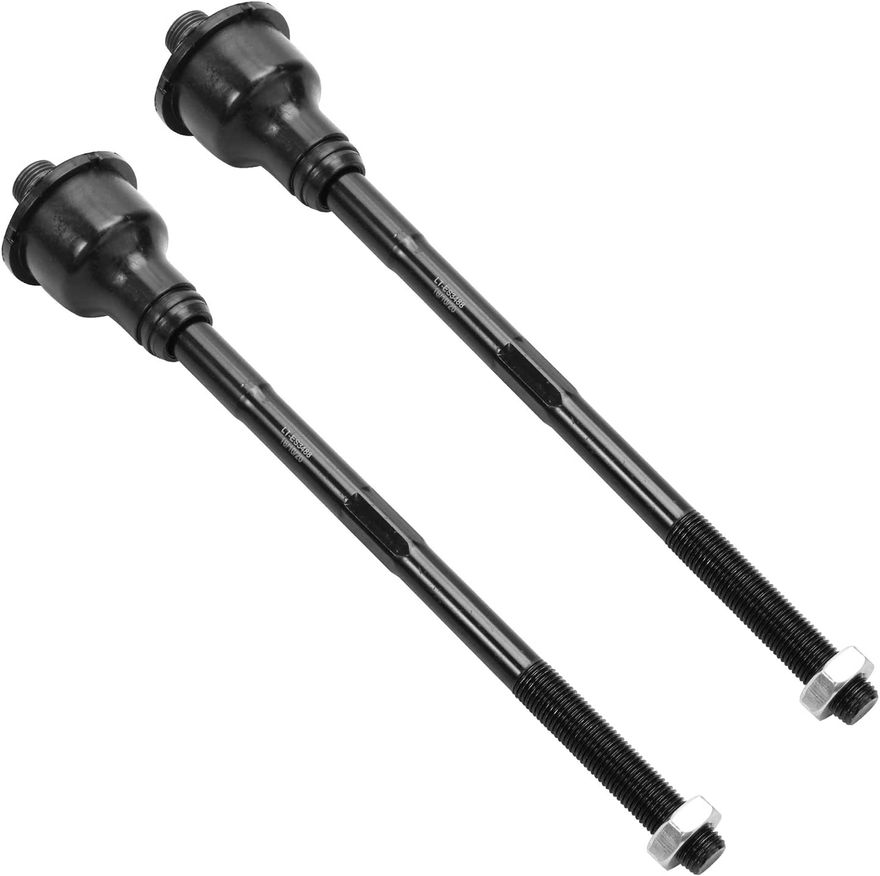

Inner Tie Rod - ES3488 x2

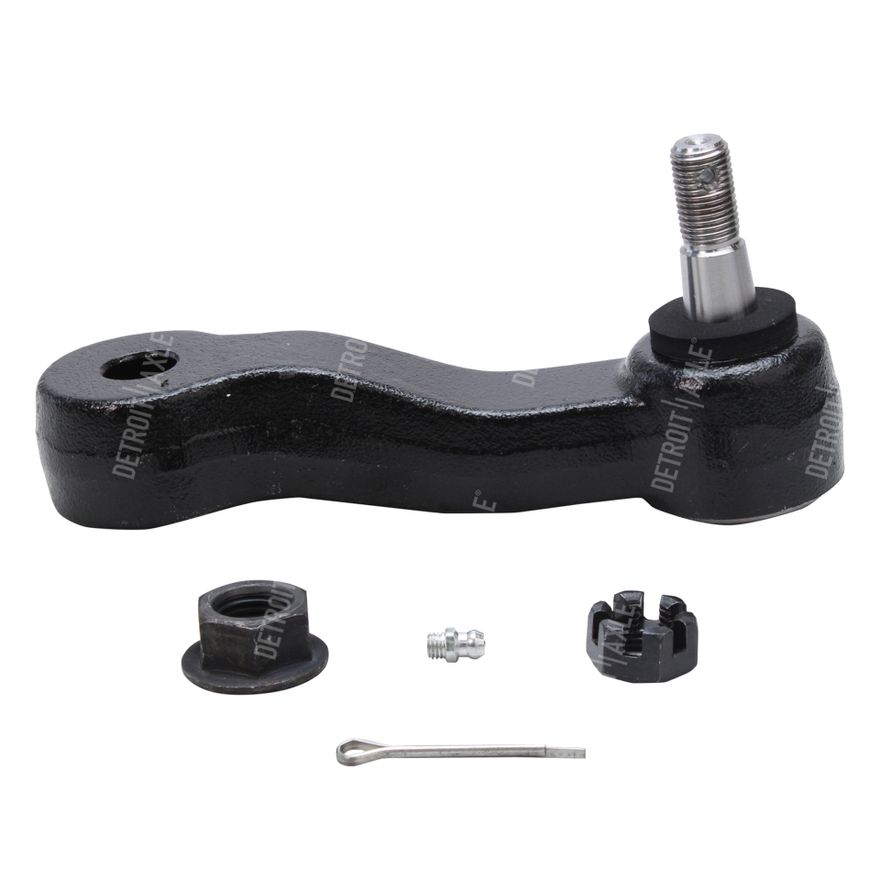

Idler Arm - K6535

Kit Component Parts

Quantity Name Part Number
2 Front Driver or Passenger Side Inner Tie Rod ES3488
2 Front Driver or Passenger Side Outer Tie Rod ES3609
1 Idler Arm K6535
1 Pitman Arm K6654
2 Front Driver or Passenger Side Lower Ball Joint K6693
2 Front Driver or Passenger Side Upper Ball Joint K6696

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 25 lbs
Dimensions: 26 × 8 × 18 in

Details:

  • Built under strict quality control standards; Tested for impact| wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars| trucks| and SUVs

Compatible Vehicles

Chevrolet

Avalanche 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2002-2004 Chevrolet Avalanche 2500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005-2006 Chevrolet Avalanche 2500 LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005-2006 Chevrolet Avalanche 2500 LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 1500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2003 Chevrolet Silverado 1500 HD LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2003 Chevrolet Silverado 1500 HD LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005 Chevrolet Silverado 1500 HD Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005 Chevrolet Silverado 1500 HD LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005-2006 Chevrolet Silverado 1500 HD LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 1500 HD Classic

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007 Chevrolet Silverado 1500 HD Classic LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2004 Chevrolet Silverado 2500 400 SS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2002 Chevrolet Silverado 2500 Cheyenne 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2002 Chevrolet Silverado 2500 Custom 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2004 Chevrolet Silverado 2500 WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2005 Chevrolet Silverado 2500 HD Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 2500 HD LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2010 Chevrolet Silverado 2500 HD LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2003-2010 Chevrolet Silverado 2500 HD WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007-2010 Chevrolet Silverado 2500 HD LTZ 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2006 Chevrolet Silverado 3500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 3500 HD 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 3500 LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 3500 LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2004 Chevrolet Silverado 3500 WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 Chevrolet Silverado 3500 HD 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 Chevrolet Silverado 3500 WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 3500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2010 Chevrolet Silverado 3500 HD LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007-2010 Chevrolet Silverado 3500 HD LTZ 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007-2010 Chevrolet Silverado 3500 HD WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Suburban 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001 Chevrolet Suburban 2500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2010 Chevrolet Suburban 2500 LS 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2010 Chevrolet Suburban 2500 LT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2007 Chevrolet Suburban 2500 LTZ 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2009 Chevrolet Suburban 2500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

GMC

Sierra 1500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2003 GMC Sierra 1500 HD SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2003 GMC Sierra 1500 HD SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2005-2006 GMC Sierra 1500 HD SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2005-2006 GMC Sierra 1500 HD SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Sierra 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 2500 SL 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2004 GMC Sierra 2500 SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2004 GMC Sierra 2500 SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2002-2004 GMC Sierra 2500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2003-2004 GMC Sierra 2500 WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Sierra 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 2500 HD SL 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2010 GMC Sierra 2500 HD SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2010 GMC Sierra 2500 HD SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2002-2005 GMC Sierra 2500 HD Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2003-2010 GMC Sierra 2500 HD WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2006 GMC Sierra 2500 HD SL 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Sierra 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 3500 SL 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2006 GMC Sierra 3500 SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2006 GMC Sierra 3500 SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2002-2005 GMC Sierra 3500 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2004-2006 GMC Sierra 3500 WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2006 GMC Sierra 3500 SL 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Sierra 3500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2010 GMC Sierra 3500 HD SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2007-2010 GMC Sierra 3500 HD SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2007-2010 GMC Sierra 3500 HD WT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Yukon XL 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2010 GMC Yukon XL 2500 SLE 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2001-2010 GMC Yukon XL 2500 SLT 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Hummer

H2

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003-2007 Hummer H2 Base 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2005-2007 Hummer H2 Adventure 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2005-2007 Hummer H2 Luxury 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket
2007 Hummer H2 Special Edition 3-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering; without Frame Bracket

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Warranty is effective from the delivery date of original purchase. Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral […]
