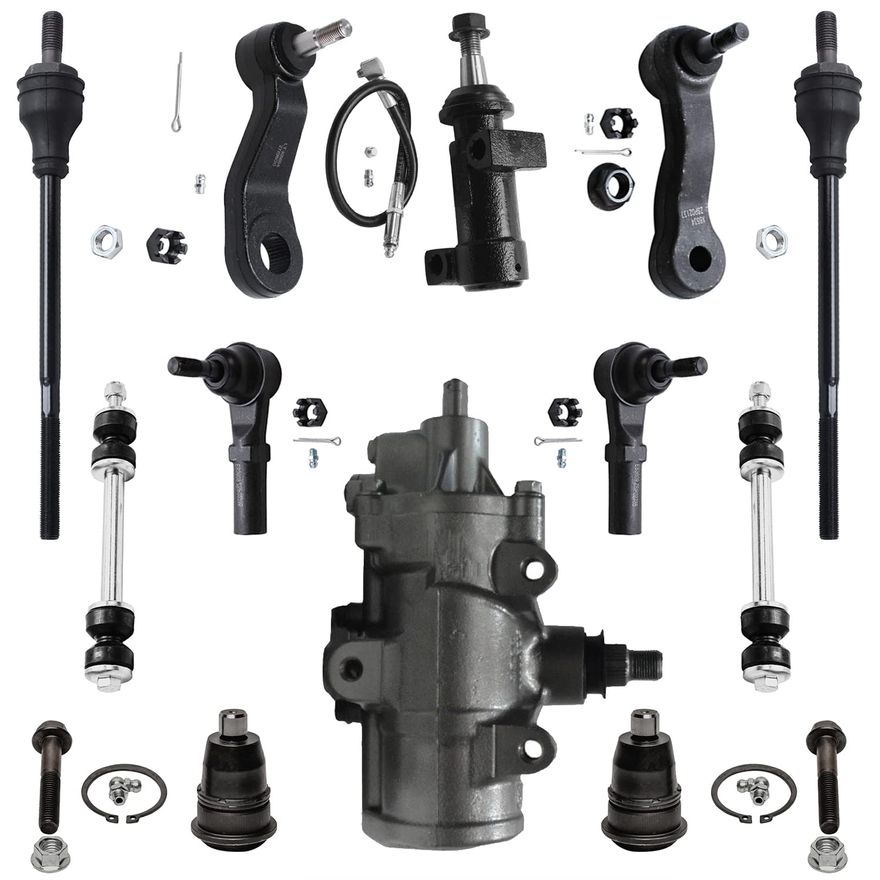

Main Image - Front Gear Box Tie Rods Kit
Gear Box - 1423GB
Front Upper Ball Joints - K6694 x2
Front Outer Tie Rods - ES3609 x2
Front Inner Tie Rods - ES80277 x2
Front Sway Bar Links - K8848 x2

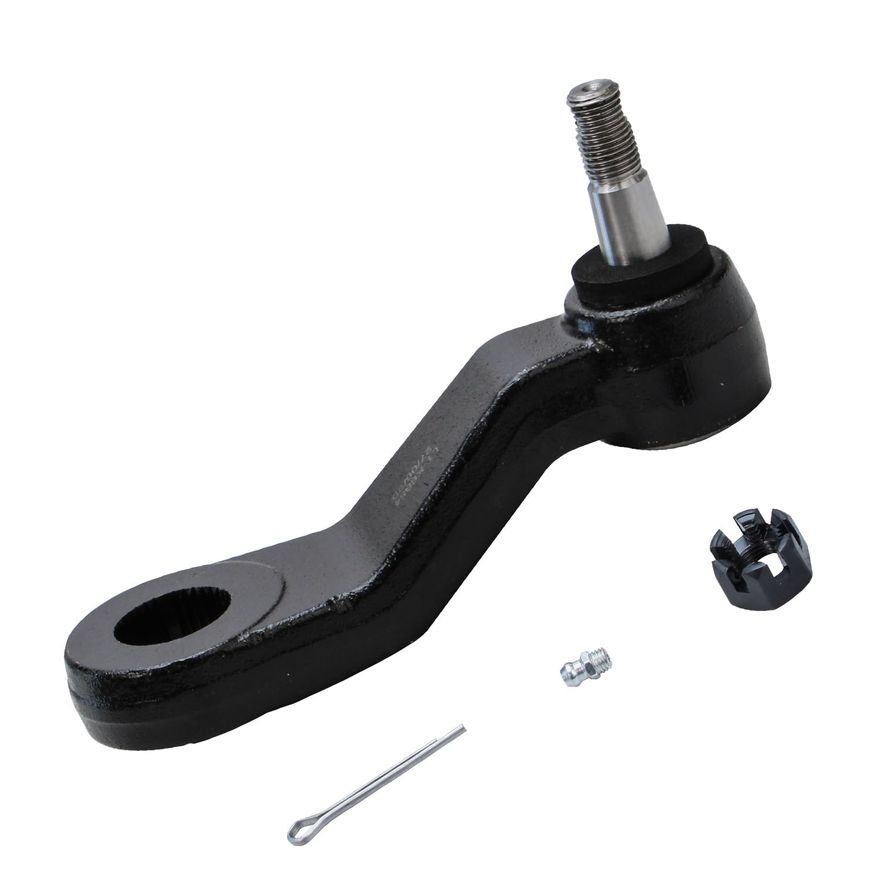

Front Pitman Arm - K6654
Front Idler Arm - K6534
Front Idler Arm Bracket - K6723

Kit Component Parts

Quantity Name Part Number
1 Gear Box 1423GB
2 Front Driver or Passenger Side Outer Tie Rod ES3609
2 Front Driver or Passenger Side Inner Tie Rod ES80277
1 Idler Arm K6534
1 Pitman Arm K6654
2 Front Driver or Passenger Side Upper Ball Joint K6694
1 Idler Arm Bracket K6723
2 Front Driver or Passenger Side Sway Bar Link K8848-WB

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 41 lbs
Dimensions: 24 × 6 × 12 in

Details:

  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • To Activate your Lifetime Warranty, you must send in your core unit. Call us when you order to get a return shipping label for your old unit

Compatible Vehicles

Chevrolet

Express 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2017 Chevrolet Express 2500 Base 3-Groove Spline Pitman Arm
2007-2017 Chevrolet Express 2500 LS 3-Groove Spline Pitman Arm
2007-2017 Chevrolet Express 2500 LT 3-Groove Spline Pitman Arm

Express 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2017 Chevrolet Express 3500 Base 3-Groove Spline Pitman Arm
2007-2017 Chevrolet Express 3500 LS 3-Groove Spline Pitman Arm
2007-2017 Chevrolet Express 3500 LT 3-Groove Spline Pitman Arm

GMC

Savana 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2017 GMC Savana 2500 Base 3-Groove Spline Pitman Arm
2007-2017 GMC Savana 2500 LS 3-Groove Spline Pitman Arm
2007-2017 GMC Savana 2500 LT 3-Groove Spline Pitman Arm
2009-2010 GMC Savana 2500 SL 3-Groove Spline Pitman Arm
2009-2010 GMC Savana 2500 SLE 3-Groove Spline Pitman Arm
2012-2013 GMC Savana 2500 SL 3-Groove Spline Pitman Arm
2012-2013 GMC Savana 2500 SLE 3-Groove Spline Pitman Arm

Savana 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2017 GMC Savana 3500 Base 3-Groove Spline Pitman Arm
2007-2017 GMC Savana 3500 LS 3-Groove Spline Pitman Arm
2007-2017 GMC Savana 3500 LT 3-Groove Spline Pitman Arm
2009-2010 GMC Savana 3500 SL 3-Groove Spline Pitman Arm
2009-2010 GMC Savana 3500 SLE 3-Groove Spline Pitman Arm
2012-2013 GMC Savana 3500 SL 3-Groove Spline Pitman Arm
2012-2013 GMC Savana 3500 SLE 3-Groove Spline Pitman Arm

Warranty

LIFETIME WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by Lifetime Warranty Warranty is effective from the date when we receive your old part (core unit); the old part must be sent to us within 45 days after delivery of the original purchase facilisis. CV Axles (Remanufactured): CV Axle Shaft Assemblies rebuilt from OEM Gear Boxes (Remanufactured): Gear Box Assemblies rebuilt from […]
