Main Image - Front Rear Wheel Hubs Tie Rods

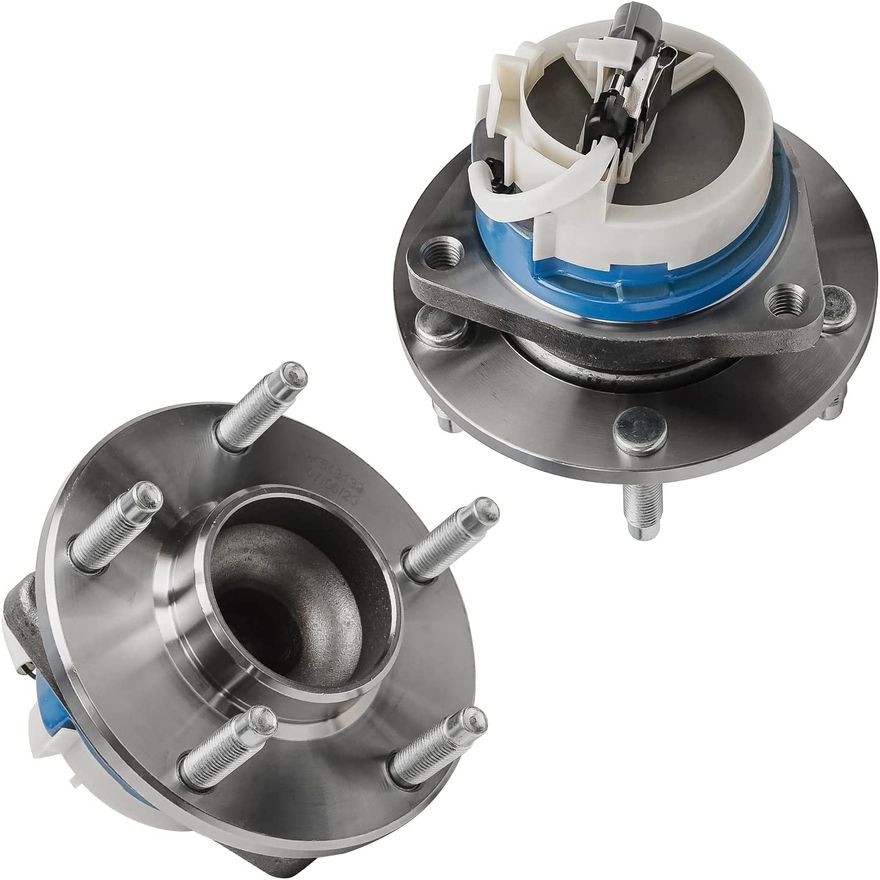

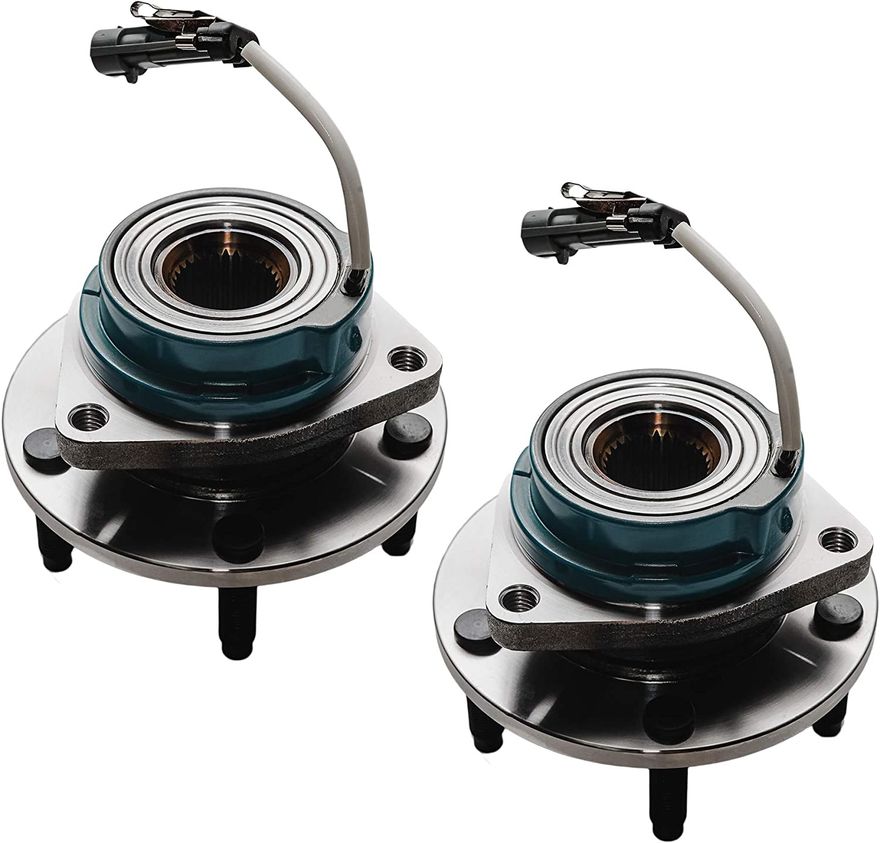

Front Wheel Hub and Bearings - 513139 x2

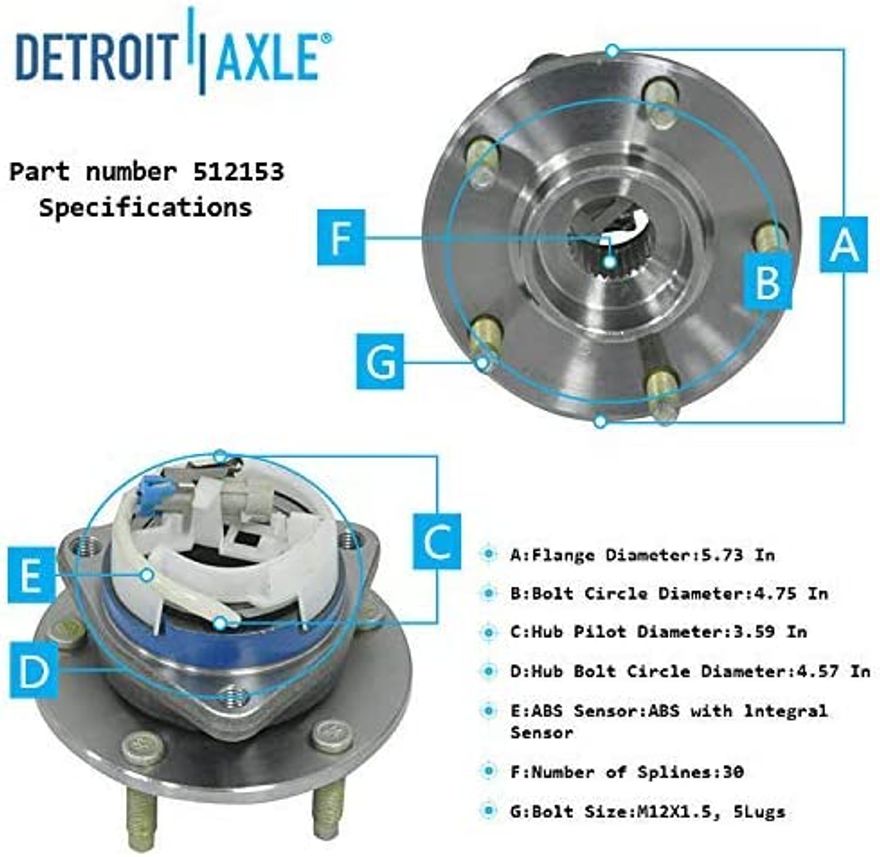

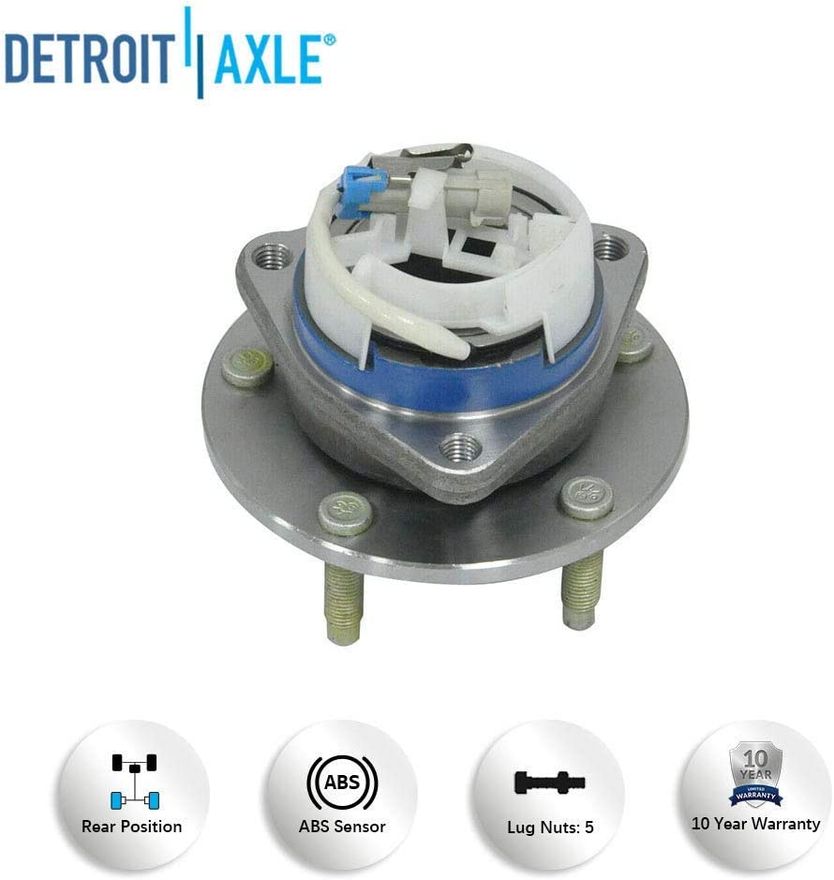

Rear Wheel Hub and Bearings - 512153 x2

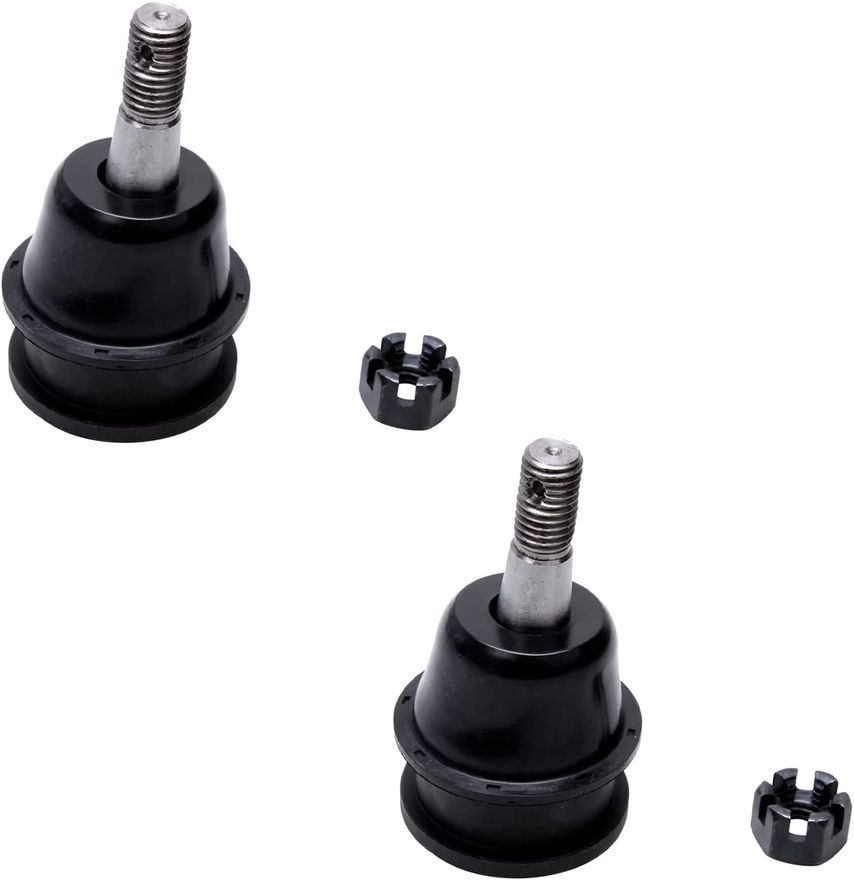

Front Lower Ball Joints - K6537 x2

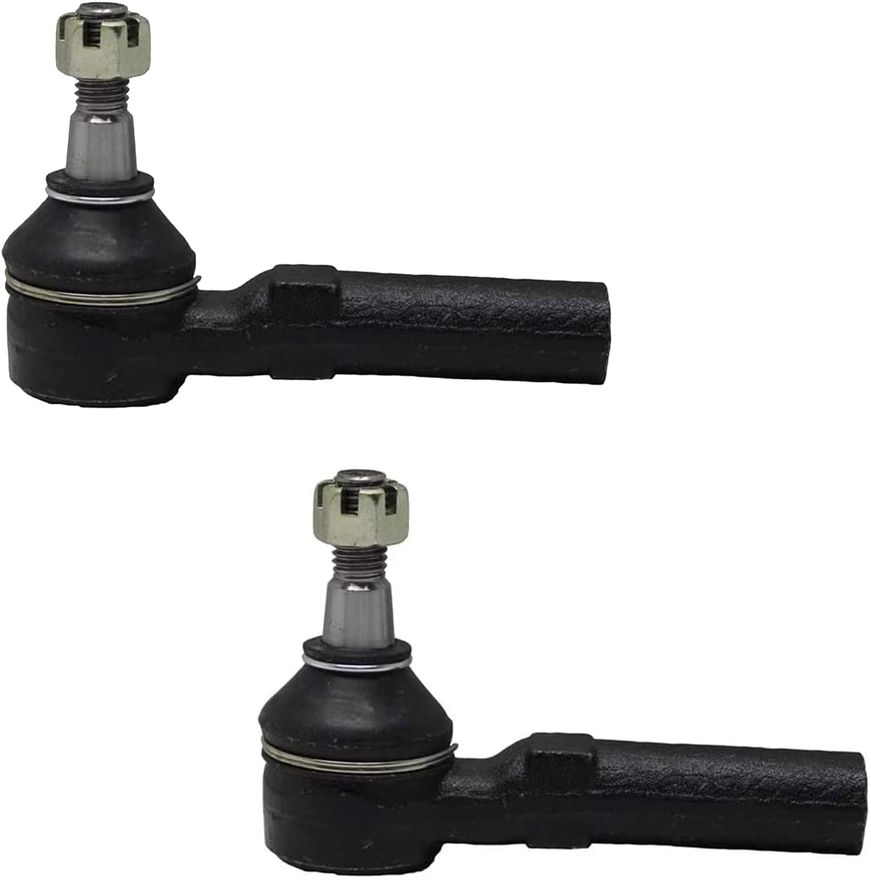

Front Outer Tie Rods - ES2231 x2
Front Inner Tie Rods - EV343 x2
Hub Details
Hub Details

Kit Component Parts

Quantity Name Part Number
2 Rear Driver or Passenger Side Wheel Hub and Bearing 512153
2 Front Driver or Passenger Side Wheel Hub and Bearing 513139
1 Rack and Pinion Tie Rod Boots (Pair) BT-433x2
2 Front Driver or Passenger Side Outer Tie Rod ES2231
2 Front Driver or Passenger Side Inner Tie Rod EV343
2 Front Driver or Passenger Side Lower Ball Joint K6537

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 40 lbs
Dimensions: 7 × 13 × 12 in

Details:

  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Undergo impact, wear, and fatigue testing to help ensure quality and durability

Compatible Vehicles

Cadillac

XLR

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2004-2005 Cadillac XLR Base Inner Tie Rods with Externally Threaded Nut
2006-2008 Cadillac XLR Base
2006-2008 Cadillac XLR V
2008 Cadillac XLR Platinum

Chevrolet

Corvette

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
1997-2007 Chevrolet Corvette Base Inner Tie Rods with Externally Threaded Nut
1998 Chevrolet Corvette Indianapolis 500 Pace Car Inner Tie Rods with Externally Threaded Nut
2001-2004 Chevrolet Corvette Z06 Inner Tie Rods with Externally Threaded Nut
2003 Chevrolet Corvette 50th Anniversary Edition Inner Tie Rods with Externally Threaded Nut
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car Inner Tie Rods with Externally Threaded Nut
2006-2007 Chevrolet Corvette Z06 Inner Tie Rods with Externally Threaded Nut
2008 Chevrolet Corvette 427 Limited Edition Z06
2008 Chevrolet Corvette Base
2008 Chevrolet Corvette Z06

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Warranty is effective from the delivery date of original purchase. Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral […]
