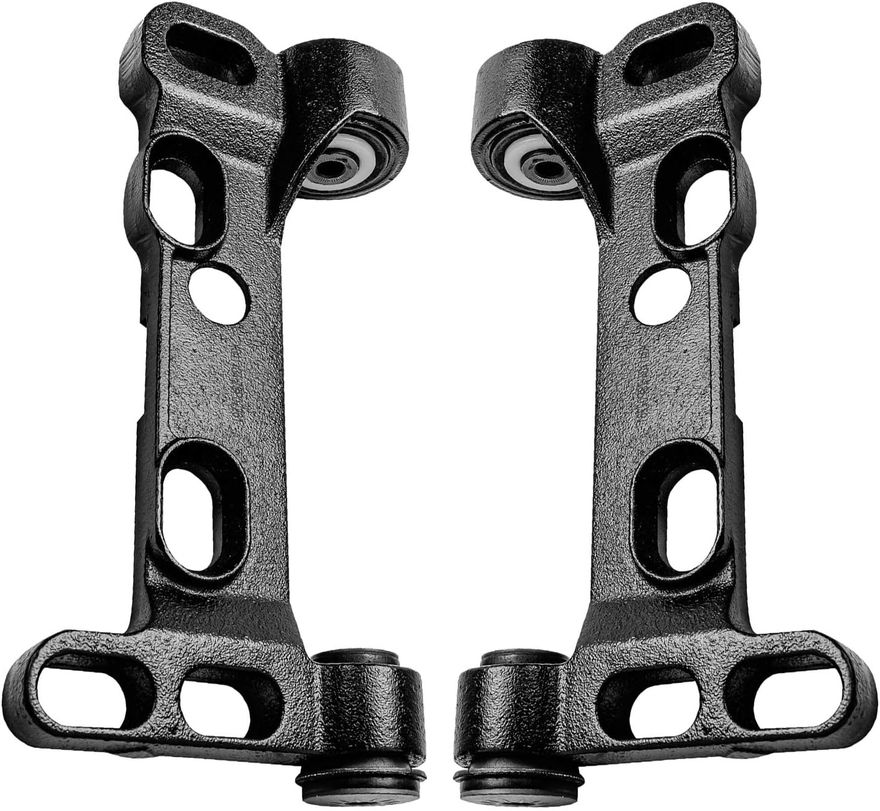

Main Image - Front Control Arm Brackets
Front Control Arm - K641134_K641135

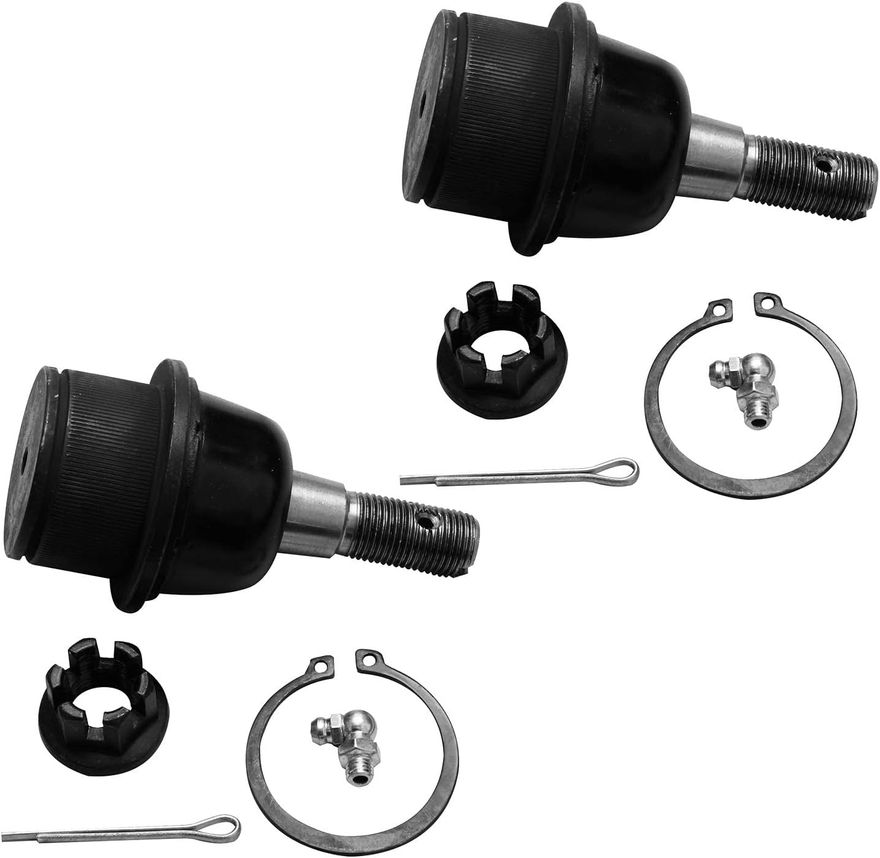

Front Lower Ball Joint - K6663 x2
Front Inner Tie Rod - EV80965 x2
Front Outer Tie Rod - ES3675_ES3676

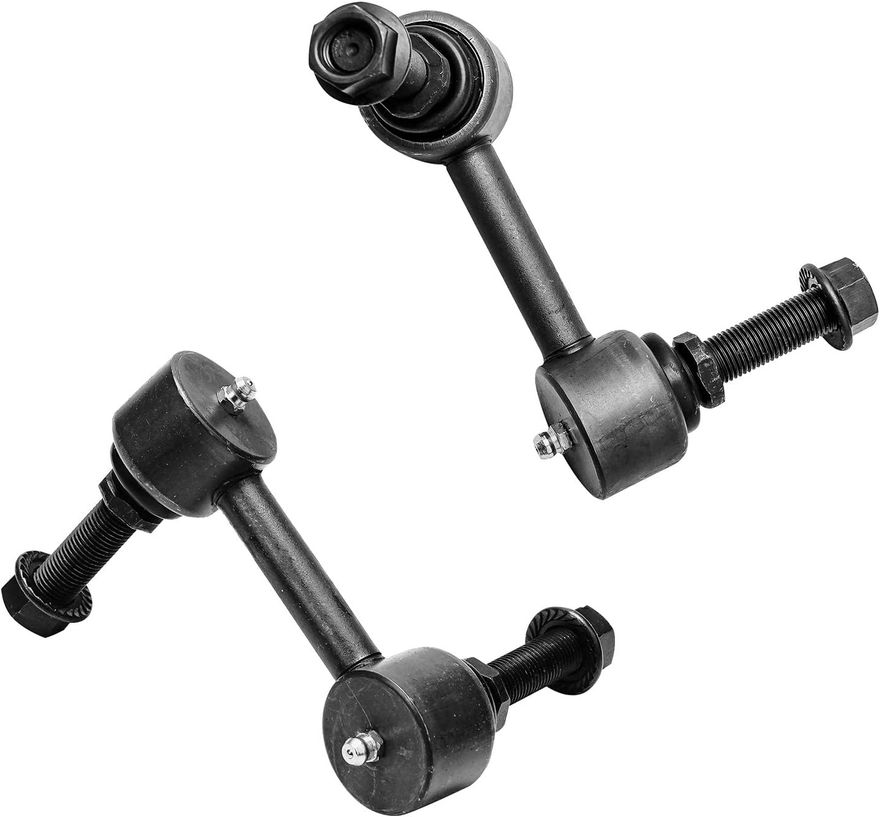

Front Sway Bar Link - K6665_K6666
Rear Sway Bar Link - K6667_K6668

Kit Component Parts

Quantity Name Part Number
1 Rack and Pinion Tie Rod Boots (Pair) BT-26135257x2
1 Front Driver Side Outer Tie Rod ES3675
1 Front Passenger Side Outer Tie Rod ES3676
2 Front Driver or Passenger Side Inner Tie Rod EV80965
1 Front Driver Side Lower Control Arm Support Bracket K641134
1 Front Passenger Side Lower Control Arm Support Bracket K641135
2 Front Driver or Passenger Side Lower Ball Joint K6663
1 Front Passenger Side Sway Bar Link K6665
1 Front Driver Side Sway Bar Link K6666
1 Rear Passenger Side Sway Bar Link K6667
1 Rear Driver Side Sway Bar Link K6668

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 36 lbs
Dimensions: 15 × 7 × 6 in

Details:

  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars, trucks, and SUVs

Compatible Vehicles

Chevrolet

Trailblazer

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 Chevrolet Trailblazer Base 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer LS 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer LT 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer LTZ 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer North Face 0.63 inch (16mm) Threads

Trailblazer EXT

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 Chevrolet Trailblazer EXT LS 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer EXT LT 0.63 inch (16mm) Threads
2003 Chevrolet Trailblazer EXT North Face 0.63 inch (16mm) Threads

GMC

Envoy

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 GMC Envoy SLE 0.63 inch (16mm) Threads
2003 GMC Envoy SLT 0.63 inch (16mm) Threads

Envoy XL

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 GMC Envoy XL SLE 0.63 inch (16mm) Threads
2003 GMC Envoy XL SLT 0.63 inch (16mm) Threads

Isuzu

Ascender

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 Isuzu Ascender Base 0.63 inch (16mm) Threads
2003 Isuzu Ascender Limited 0.63 inch (16mm) Threads
2003 Isuzu Ascender LS 0.63 inch (16mm) Threads

Oldsmobile

Bravada

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003 Oldsmobile Bravada Base 0.63 inch (16mm) Threads

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Warranty is effective from the delivery date of original purchase. Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral […]
