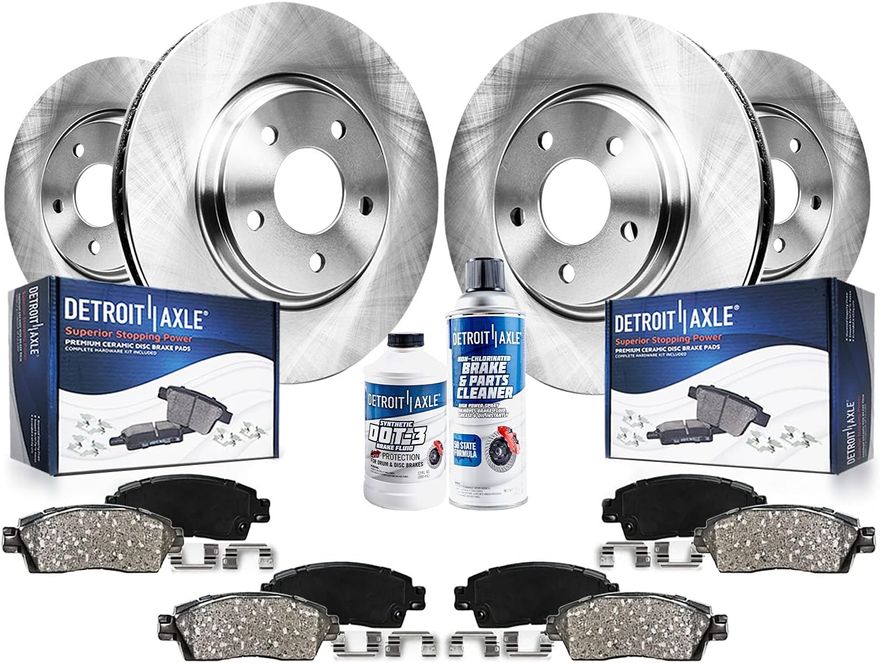

Main Image - Front Rear Rotors Brake Pads

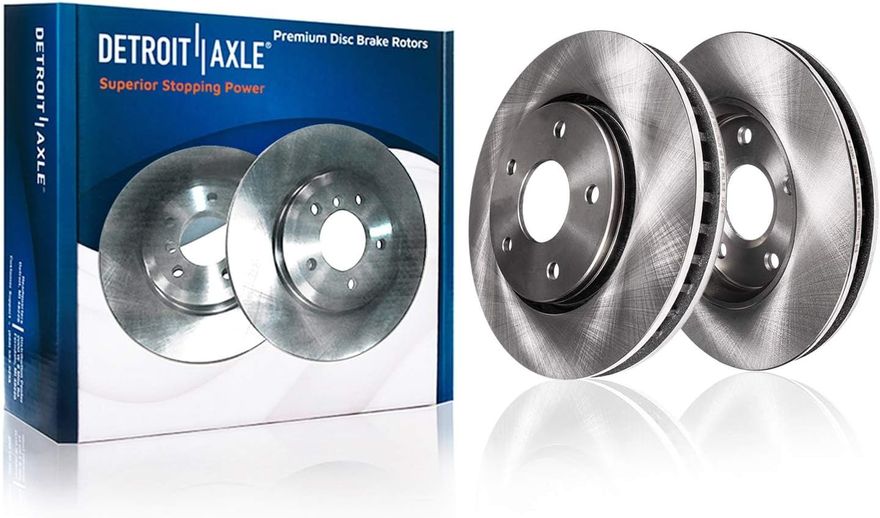

Front Disc Brake Rotor - R-800166 x2
Rear Disc Brake Rotor - R-800147 x2

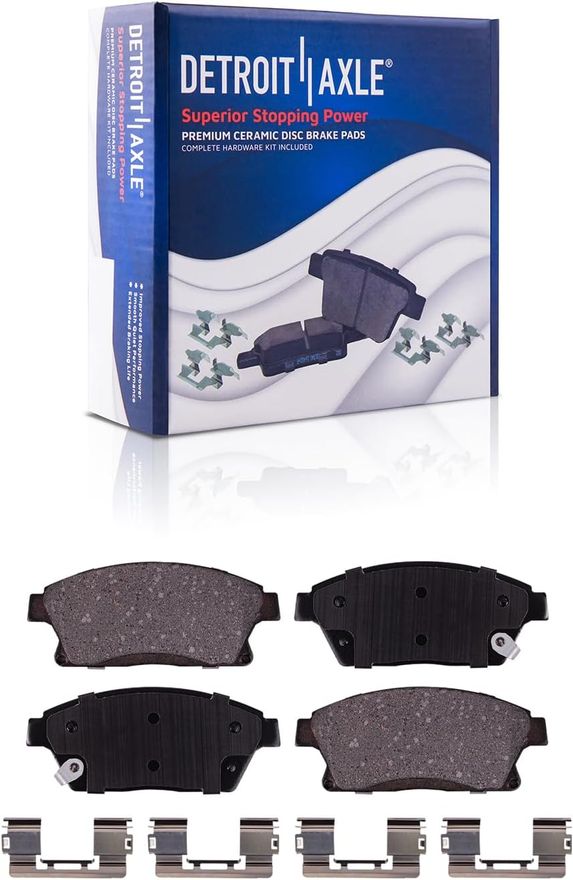

Front Ceramic Brake Pad - P-1467 x2

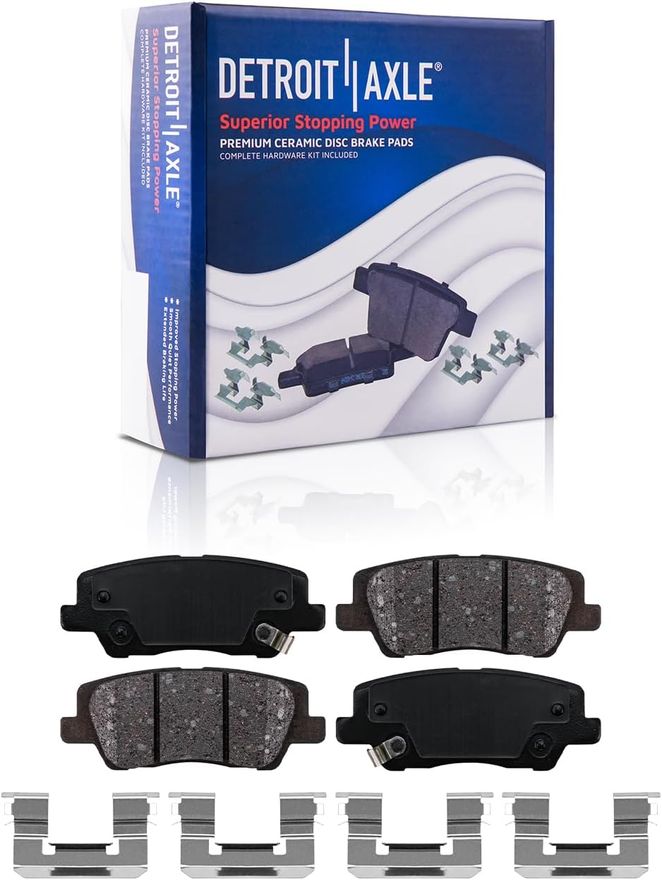

Rear Ceramic Brake Pad - P-1659 x2

Kit Component Parts

Quantity Name Part Number
1 Brake Fluid DA1012BF
1 Brake Cleaner DA1018BC
2 Front Ceramic Brake Pads P-1467
2 Rear Ceramic Brake Pads P-1659
1 Rear Brake Rotors (Pair) R-800147x2
1 Front Brake Rotors (Pair) R-800166x2

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 70 lbs
Dimensions: 16 × 6 × 12 in

Details:

  • Brake Kits are built to exceed OEM Specification and have the proper fit and finish required for superior stopping power
  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility

Compatible Vehicles

Cadillac

ATS

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2014 Cadillac ATS Base GM Brake Code JE5; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2014 Cadillac ATS Luxury GM Brake Code JE5; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2014 Cadillac ATS Performance GM Brake Code JE5; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2014 Cadillac ATS Premium GM Brake Code JE5; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2014 Cadillac ATS Premium Sport GM Brake Code JE5; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2015 Cadillac ATS Base Models without Brembo Front Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2015 Cadillac ATS Luxury Models without Brembo Front Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2015 Cadillac ATS Performance Models without Brembo Front Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2015 Cadillac ATS Premium Models without Brembo Front Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2017-2018 Cadillac ATS Base Standard Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2017-2018 Cadillac ATS Luxury Standard Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2017-2018 Cadillac ATS Premium Luxury Standard Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor
2017-2018 Cadillac ATS Premium Performance Standard Brakes; 11.81 inch (300mm) Front and 12.40 inch (315mm) Rear Rotor

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Warranty is effective from the delivery date of original purchase. Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral […]
