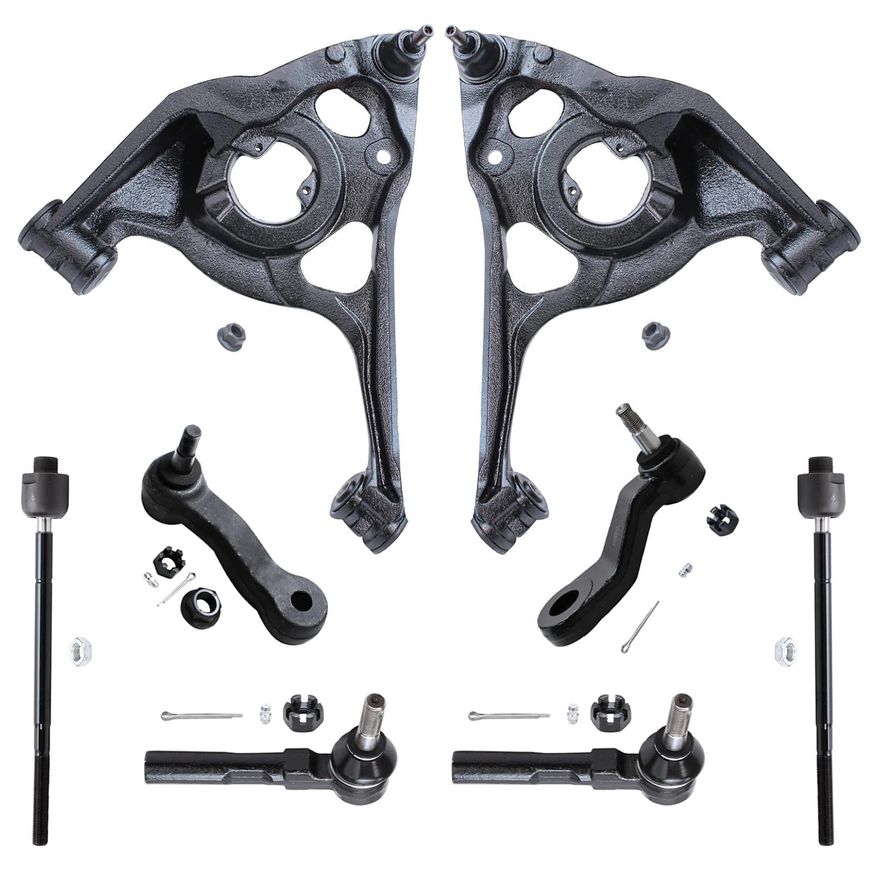

Main Image - Front Control Arms Tie Rods
Front Control Arm - MS501053_MS501054
Front Inner Tie Rod - ES80277 x2
Front Outer Tie Rod - ES3609 x2
Front Idler Arm - K6534
Front Pitman Arm - K6654

Kit Component Parts

Quantity Name Part Number
2 Front Driver or Passenger Side Outer Tie Rod ES3609
2 Front Driver or Passenger Side Inner Tie Rod ES80277
1 Idler Arm K6534
1 Pitman Arm K6654
1 Front Driver Side Lower Control Arm w/Ball Joint MS501053
1 Front Passenger Side Lower Control Arm w/Ball Joint MS501054

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 72 lbs
Dimensions: 19 × 12 × 6 in

Details:

  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars, trucks, and SUVs

Compatible Vehicles

Chevrolet

Express 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2006-2014 Chevrolet Express 2500 Base with 7300 LB GVW
2006-2014 Chevrolet Express 2500 LS with 7300 LB GVW
2006-2014 Chevrolet Express 2500 LT with 7300 LB GVW

Express 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003-2013 Chevrolet Express 3500 Base with 7300 LB GVW
2003-2013 Chevrolet Express 3500 LS with 7300 LB GVW
2006-2013 Chevrolet Express 3500 LT with 7300 LB GVW

GMC

Savana 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2006-2014 GMC Savana 2500 Base with 7300 LB GVW
2007-2014 GMC Savana 2500 LS with 7300 LB GVW
2007-2014 GMC Savana 2500 LT with 7300 LB GVW
2009-2010 GMC Savana 2500 SL with 7300 LB GVW
2009-2010 GMC Savana 2500 SLE with 7300 LB GVW
2012-2013 GMC Savana 2500 SL with 7300 LB GVW
2012-2013 GMC Savana 2500 SLE with 7300 LB GVW

Savana 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003-2013 GMC Savana 3500 Base with 7300 LB GVW
2003-2005 GMC Savana 3500 SLE with 7300 LB GVW
2006-2013 GMC Savana 3500 LS with 7300 LB GVW
2006-2013 GMC Savana 3500 LT with 7300 LB GVW
2009-2010 GMC Savana 3500 SL with 7300 LB GVW
2009-2010 GMC Savana 3500 SLE with 7300 LB GVW
2012-2013 GMC Savana 3500 SL with 7300 LB GVW
2012-2013 GMC Savana 3500 SLE with 7300 LB GVW

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS
