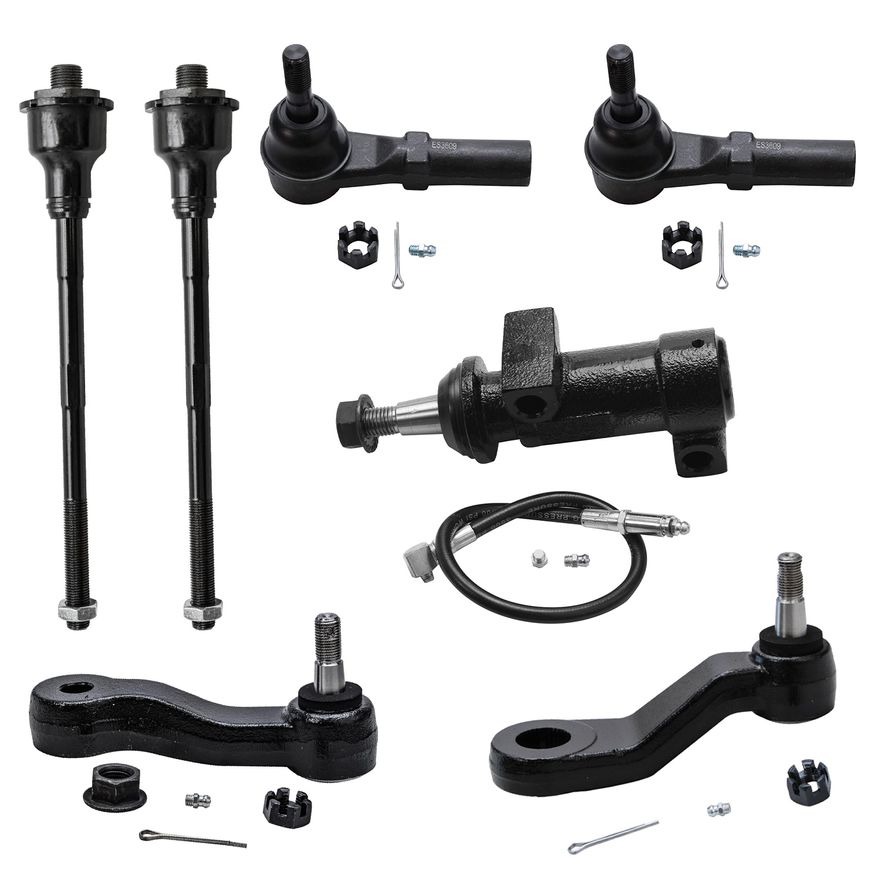

Main Image - Small Suspension Kit
Idler Arm - K6535
Idler Arm Bracket - K6723
Pitman Arm - K6654
Outer Tie Rod - ES3609 x2
Inner Tie Rod - ES3488 x2

Kit Component Parts

Quantity Name Part Number

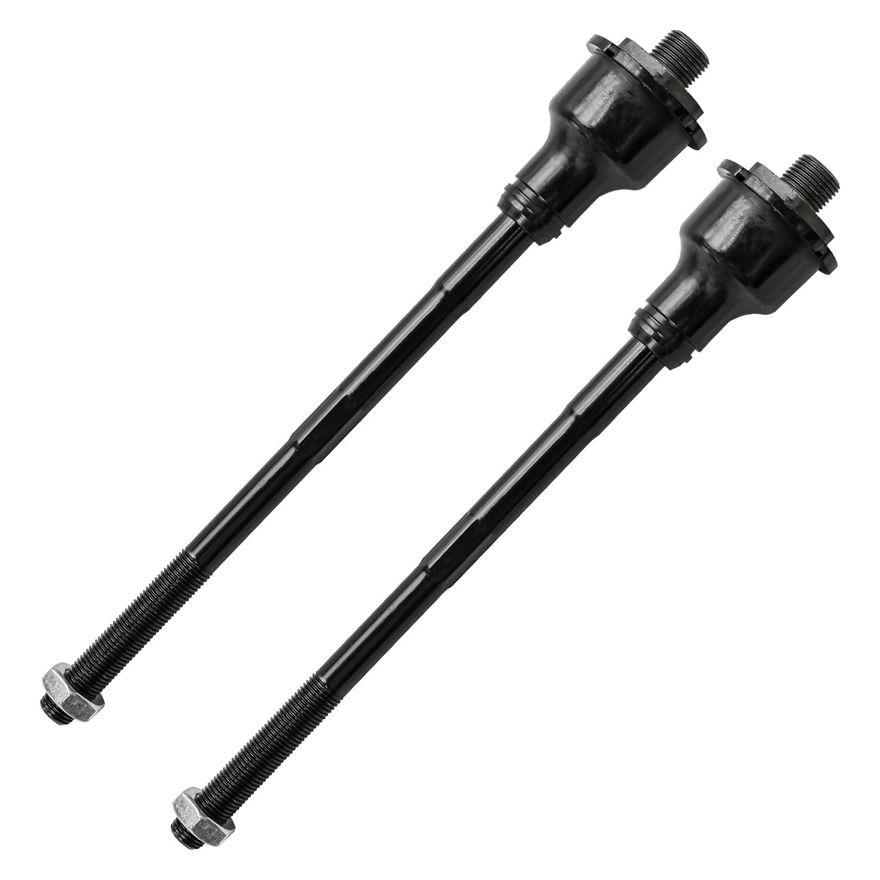

2 Front Driver or Passenger Side Inner Tie Rod ES3488

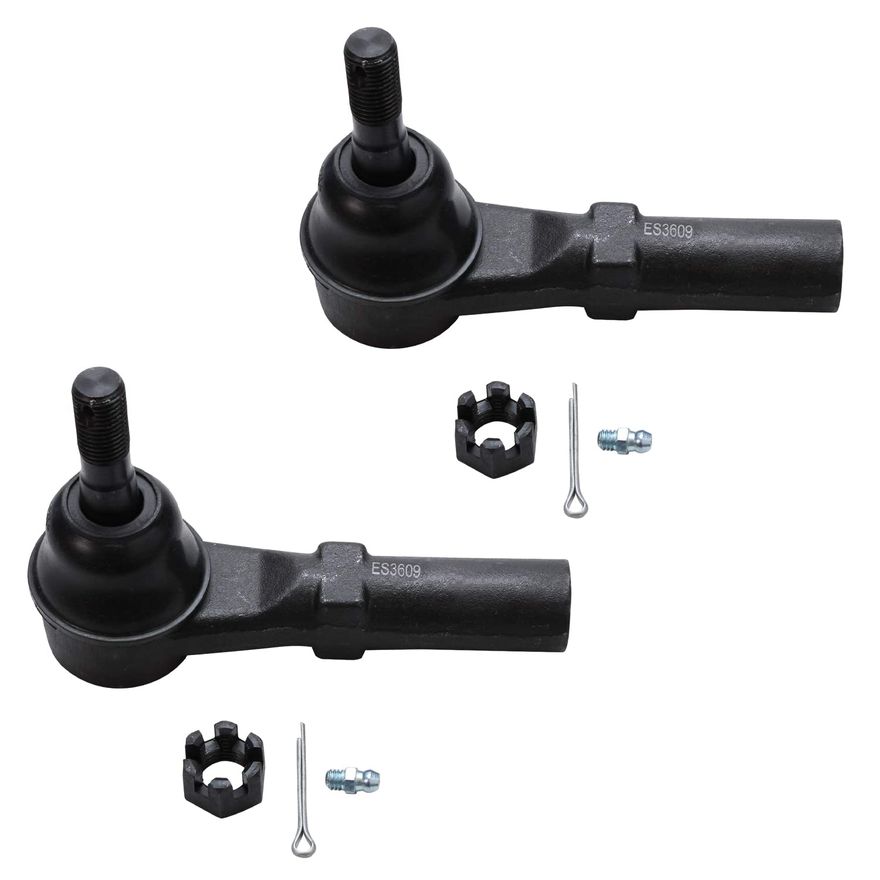

2 Front Driver or Passenger Side Outer Tie Rod ES3609

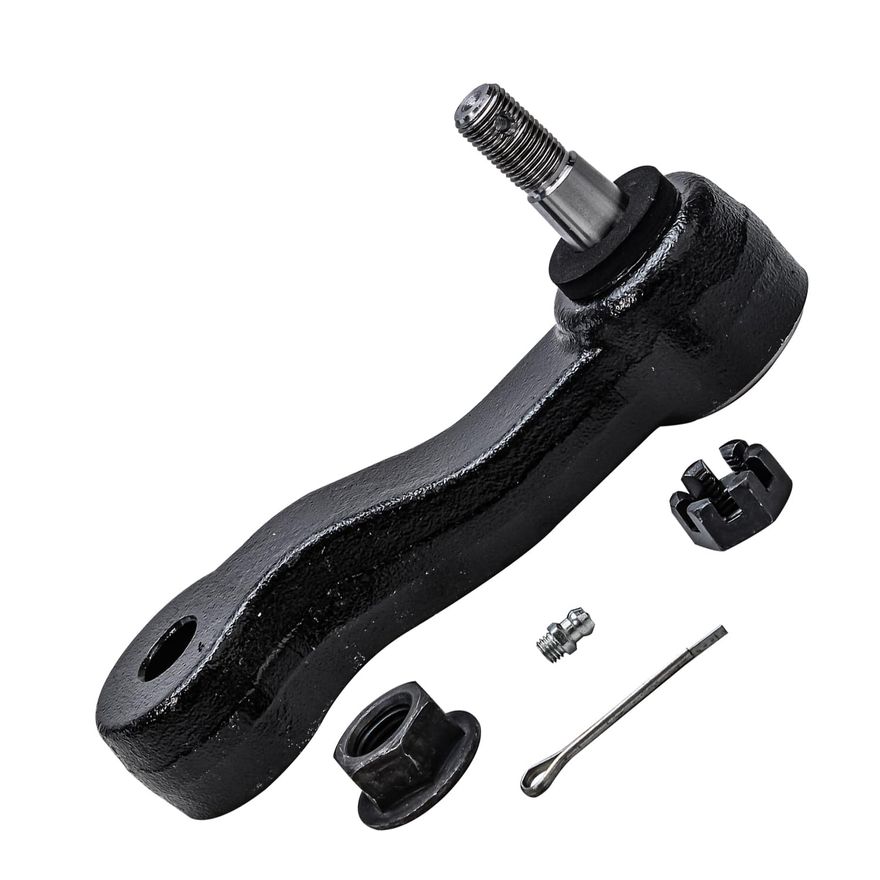

1 Idler Arm K6535

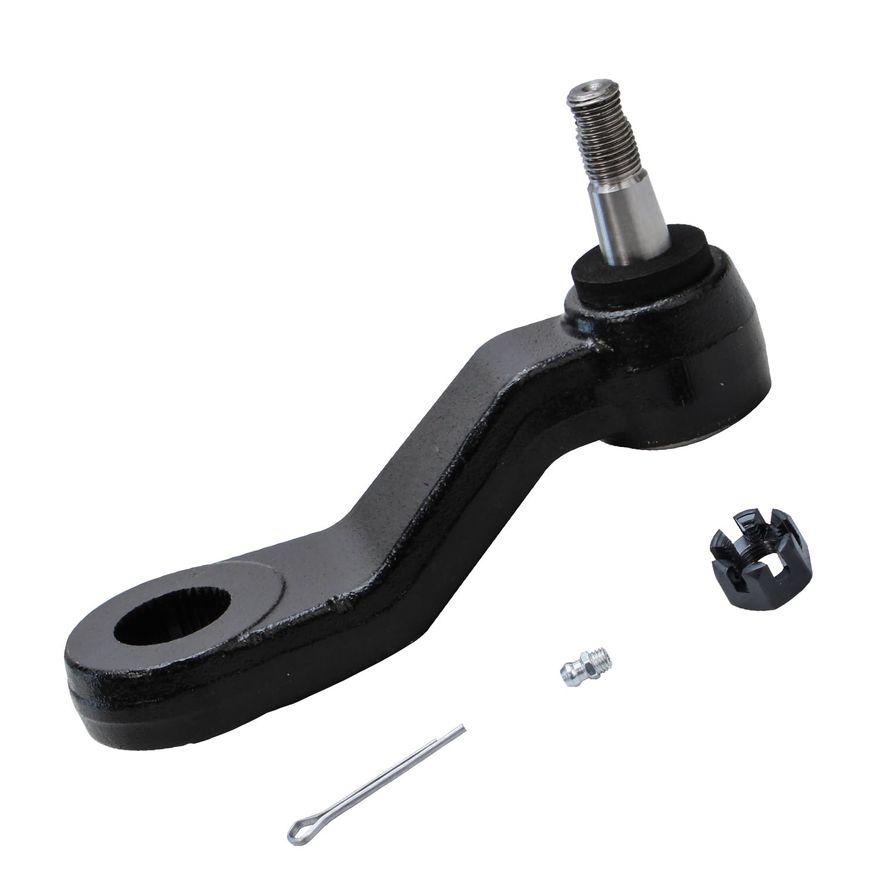

1 Pitman Arm K6654

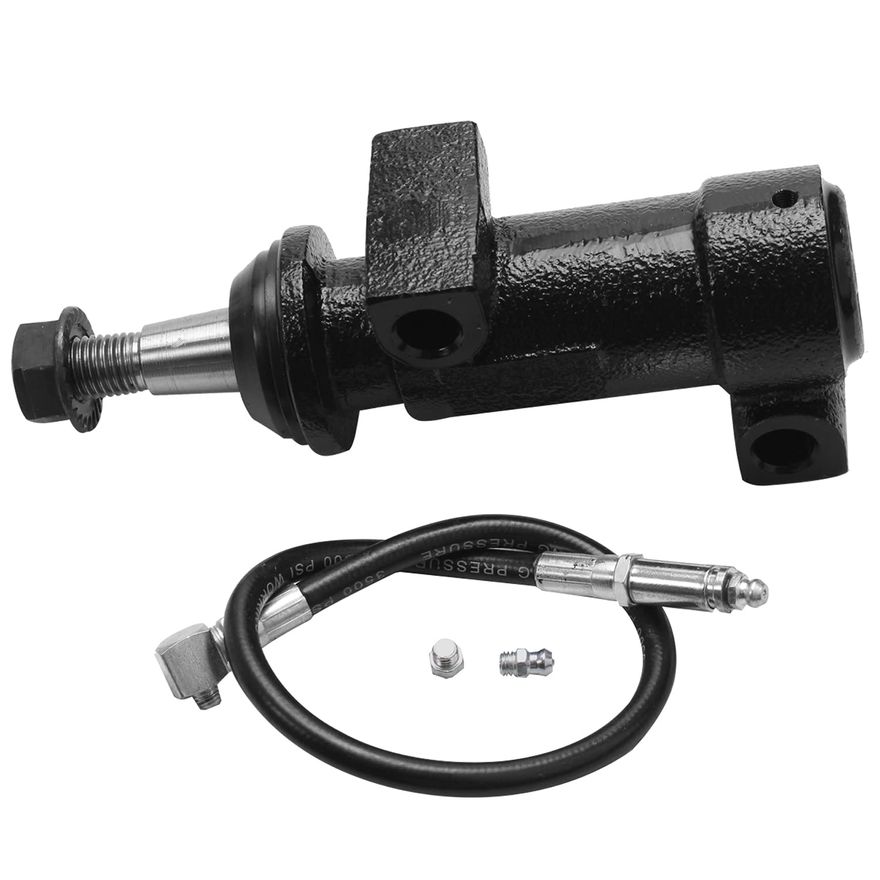

1 Idler Arm Bracket K6723

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 11 lbs
Dimensions: 14 × 4 × 21 in

Details:

  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars| trucks| and SUVs
  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility

Compatible Vehicles

Chevrolet

Avalanche 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2002-2004 Chevrolet Avalanche 2500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2005-2006 Chevrolet Avalanche 2500 LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2005-2006 Chevrolet Avalanche 2500 LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Silverado 1500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2003 Chevrolet Silverado 1500 HD LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2003 Chevrolet Silverado 1500 HD LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2005 Chevrolet Silverado 1500 HD Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2005 Chevrolet Silverado 1500 HD LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2005-2006 Chevrolet Silverado 1500 HD LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Silverado 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2004 Chevrolet Silverado 2500 400 SS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2004 Chevrolet Silverado 2500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2002 Chevrolet Silverado 2500 Cheyenne Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2002 Chevrolet Silverado 2500 Custom Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2004 Chevrolet Silverado 2500 LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2004 Chevrolet Silverado 2500 LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2004 Chevrolet Silverado 2500 WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Silverado 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2005 Chevrolet Silverado 2500 HD Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2006 Chevrolet Silverado 2500 HD LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2010 Chevrolet Silverado 2500 HD LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2003-2010 Chevrolet Silverado 2500 HD WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2007-2010 Chevrolet Silverado 2500 HD LTZ Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Silverado 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2006 Chevrolet Silverado 3500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2004 Chevrolet Silverado 3500 HD Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2006 Chevrolet Silverado 3500 LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2001-2006 Chevrolet Silverado 3500 LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2004 Chevrolet Silverado 3500 WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2006 Chevrolet Silverado 3500 HD Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2006 Chevrolet Silverado 3500 WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Silverado 3500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2010 Chevrolet Silverado 3500 HD LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2007-2010 Chevrolet Silverado 3500 HD LTZ Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm
2007-2010 Chevrolet Silverado 3500 HD WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm

Suburban 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001 Chevrolet Suburban 2500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2012 Chevrolet Suburban 2500 LS Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2012 Chevrolet Suburban 2500 LT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2007 Chevrolet Suburban 2500 LTZ Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2009 Chevrolet Suburban 2500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

GMC

Sierra 1500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2003 GMC Sierra 1500 HD SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2003 GMC Sierra 1500 HD SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2005-2006 GMC Sierra 1500 HD SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2005-2006 GMC Sierra 1500 HD SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Sierra 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 2500 SL Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2004 GMC Sierra 2500 SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2004 GMC Sierra 2500 SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2002-2004 GMC Sierra 2500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2003-2004 GMC Sierra 2500 WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Sierra 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 2500 HD SL Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2010 GMC Sierra 2500 HD SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2010 GMC Sierra 2500 HD SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2002-2005 GMC Sierra 2500 HD Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2003-2010 GMC Sierra 2500 HD WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2006 GMC Sierra 2500 HD SL Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Sierra 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2002 GMC Sierra 3500 SL Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2006 GMC Sierra 3500 SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2006 GMC Sierra 3500 SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2002-2005 GMC Sierra 3500 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2004-2006 GMC Sierra 3500 WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2006 GMC Sierra 3500 SL Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Sierra 3500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2007-2010 GMC Sierra 3500 HD SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2007-2010 GMC Sierra 3500 HD SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2007-2010 GMC Sierra 3500 HD WT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Yukon XL 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2001-2012 GMC Yukon XL 2500 SLE Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2001-2012 GMC Yukon XL 2500 SLT Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Hummer

H2

Swipe left & right to view
additional chart details

Year Make Model Submodel Note
2003-2007 Hummer H2 Base Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2005-2007 Hummer H2 Adventure Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2005-2007 Hummer H2 Luxury Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket
2007 Hummer H2 Special Edition Does Not Fit Models with Rack and Pinion Steering; 3-Groove Pitman Arm; without Frame Bracket

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS
